BY1248CT2

DIN Rail Energy Meter + 2 CTs

Available to order

Class 1 energy metering with RS485 communication and two included 200:5 A split-core CTs.

Do not substitute the protective ground conductor for a neutral. Confirm the wiring and CT configuration with a qualified electrician.

$145.00~~$235.00~~USD · shipping included · tax at checkout

Need a larger quantity or custom setup?

One-year warranty Personal product support

Seven-digit LCD energy display (5 + 2 digits).

Far-infrared and RS485 data communication for compatible AMR systems.

Passive pulse outputs with a specified rate of 10 kWh per pulse.

Automatic current-flow direction detection with an LCD indication.

PRODUCT OVERVIEW

Get to know the BY1248CT2.

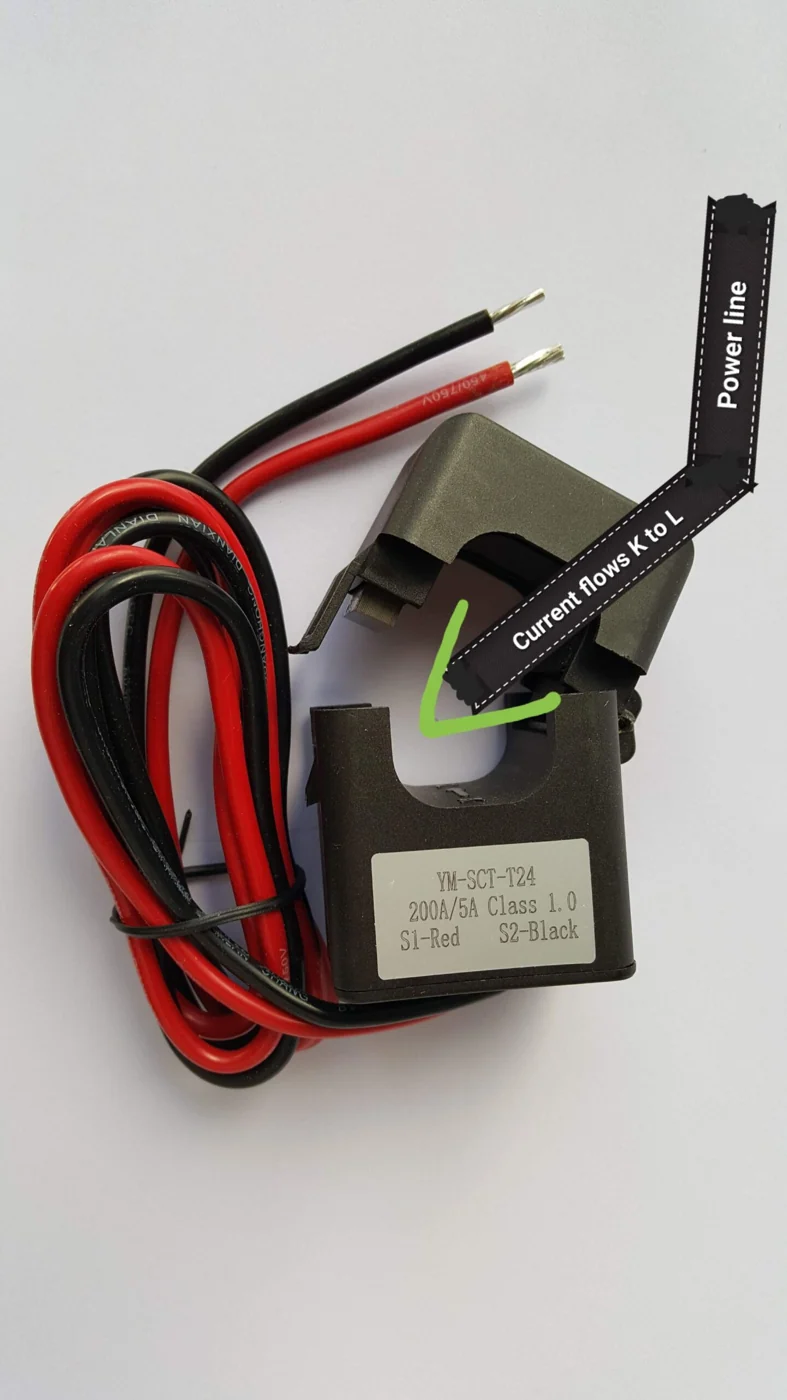

A DIN rail active-energy meter for single-, two-, or three-phase installations with up to four wires. The configuration includes two 200:5 A split-core CTs with a 25 mm internal opening. A third CT or another current rating is available on request.

Suitable for submetering in marinas, campgrounds, condominiums, tenant buildings, and rental apartments. This model is not intended for solar net metering. Ask about the BEY630M2CT or BEYX96 for an import/export energy application.

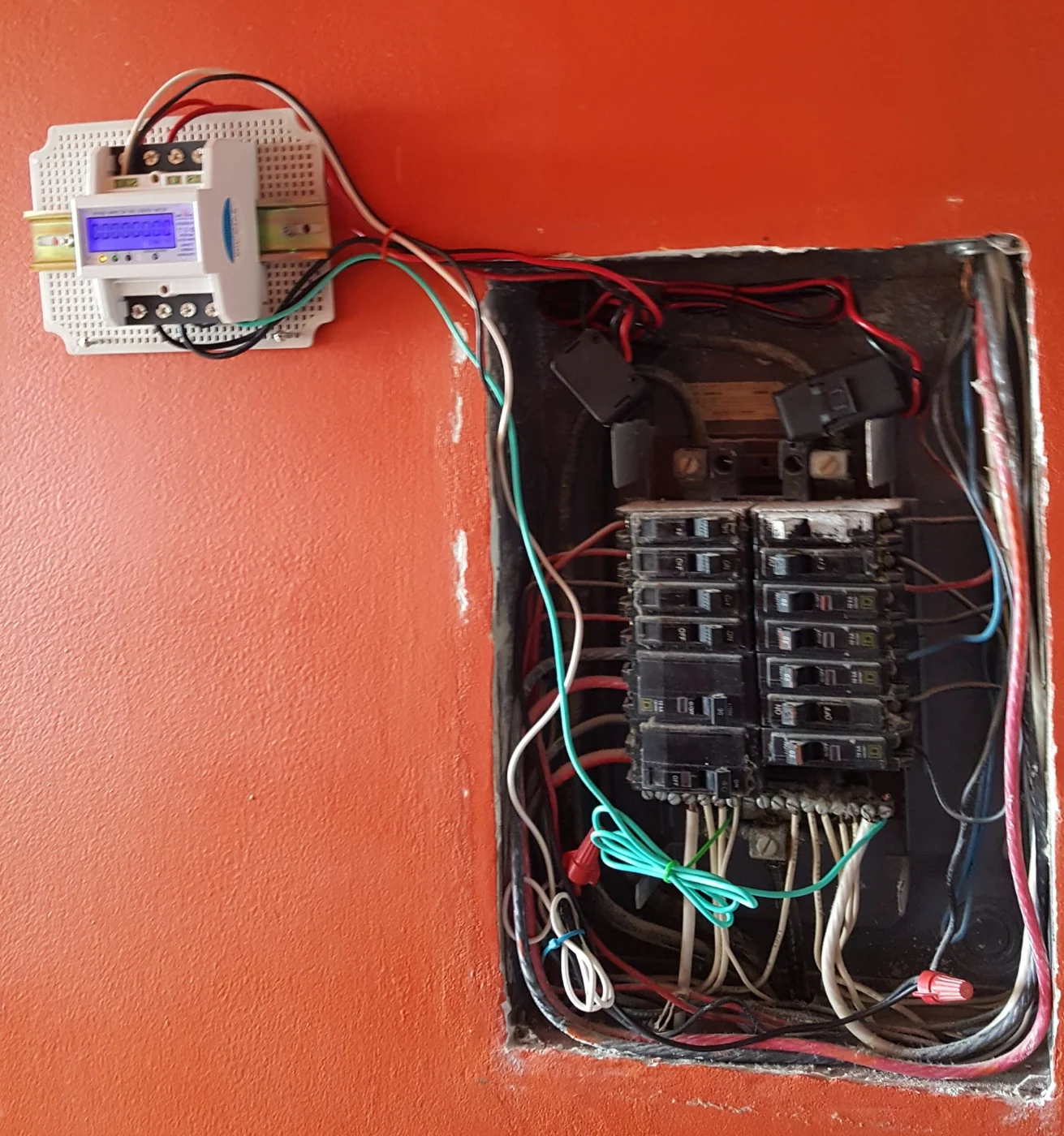

The meter measures active-energy consumption and supports compatible AMR systems through its communication and pulse interfaces. The CT ratio must be configured for the installed transformers. A neutral is required; installation must be completed by a qualified electrician using the applicable wiring diagram.

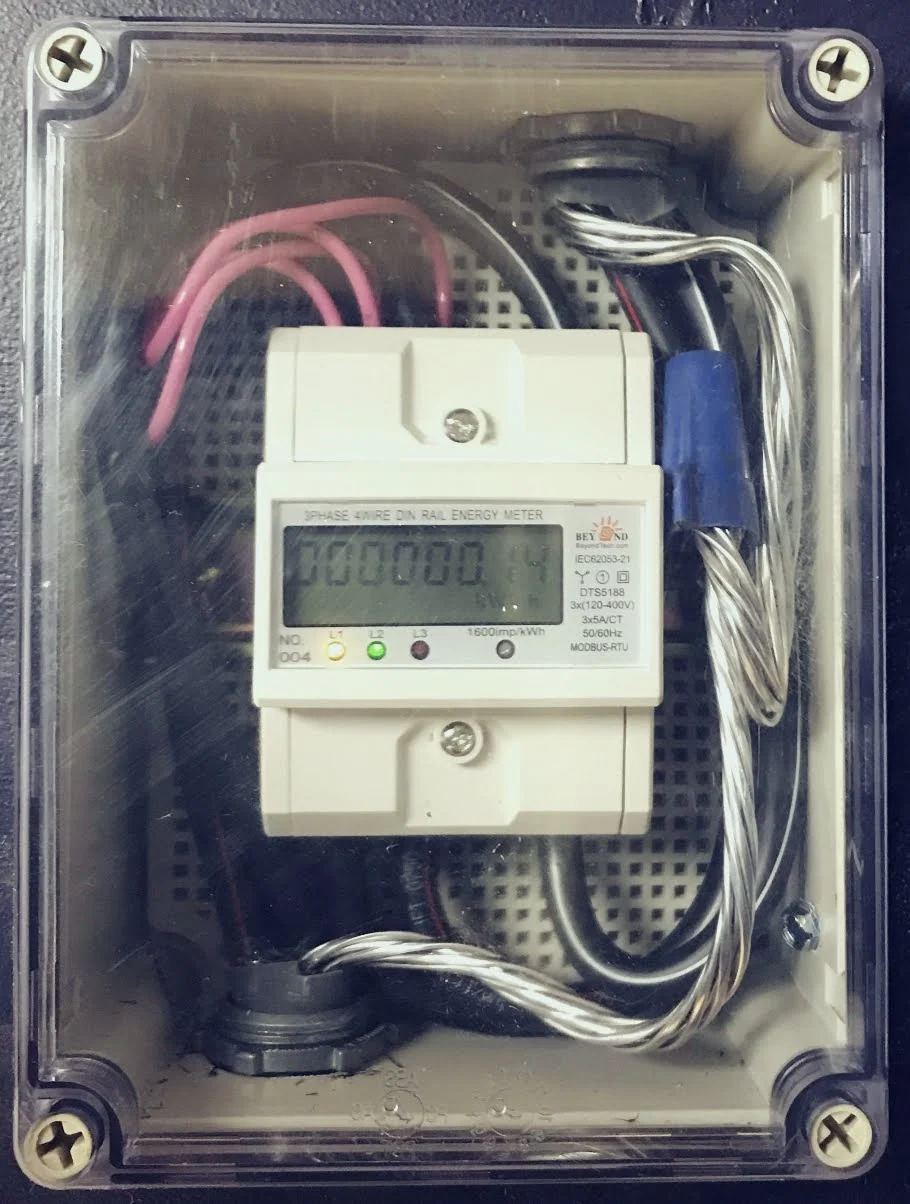

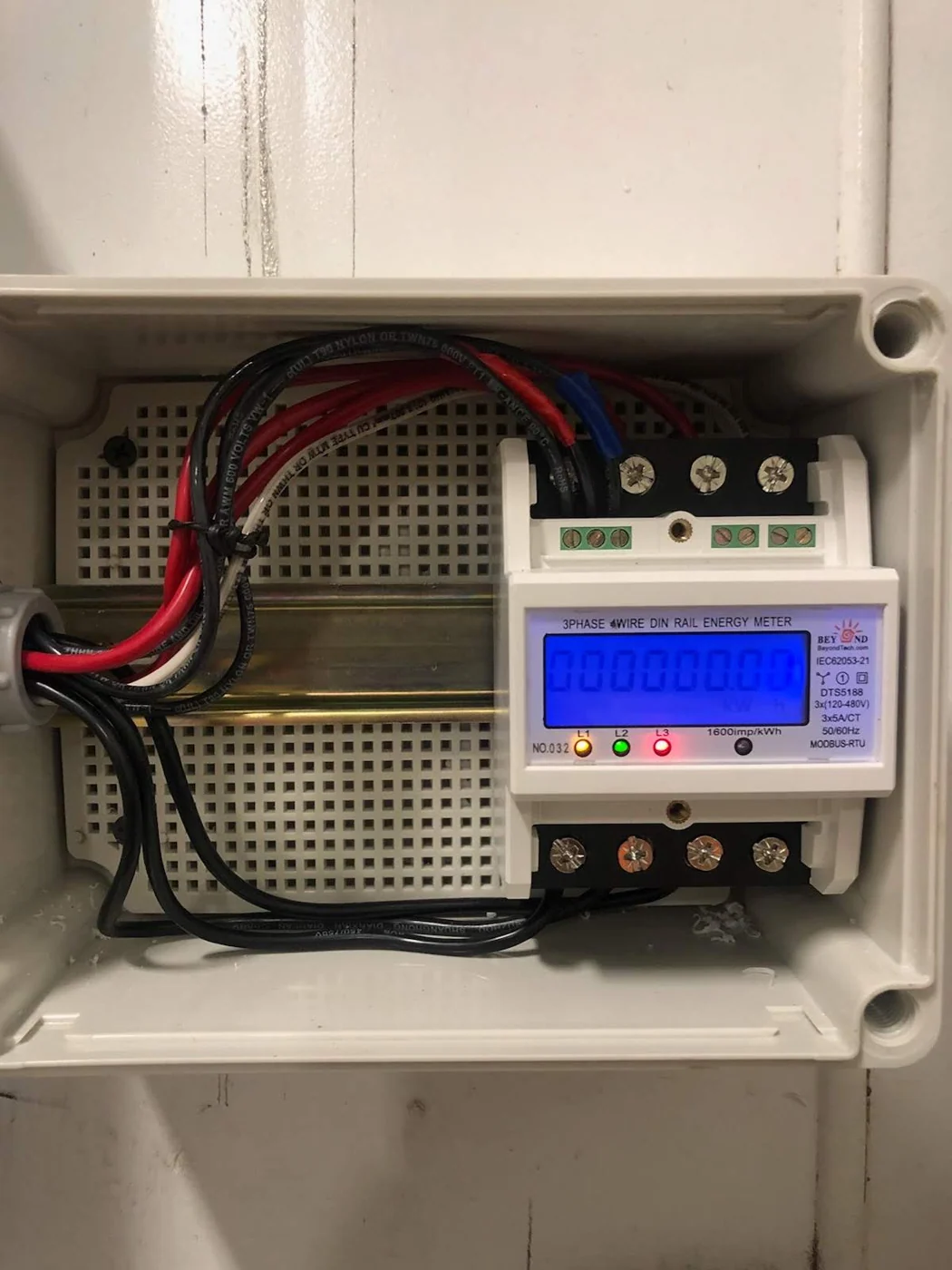

A compatible outdoor enclosure with a DIN rail, mounting plate, and transparent cover is available separately.

Features & capabilities

Seven-digit LCD energy display (5 + 2 digits).
Far-infrared and RS485 data communication for compatible AMR systems.
Passive pulse outputs with a specified rate of 10 kWh per pulse.
Automatic current-flow direction detection with an LCD indication.
Six LEDs indicate supply, energy pulse, remote pulse, and communication status.
35 mm DIN rail mounting or front-board mounting with 63 mm hole spacing.
Ten-pole width, using a 12.5 mm module; short terminal covers supplied.
An extended terminal cover and a configuration without data communication may be available on request.
External CT configurations are available for higher-current applications, up to 7,500 A.

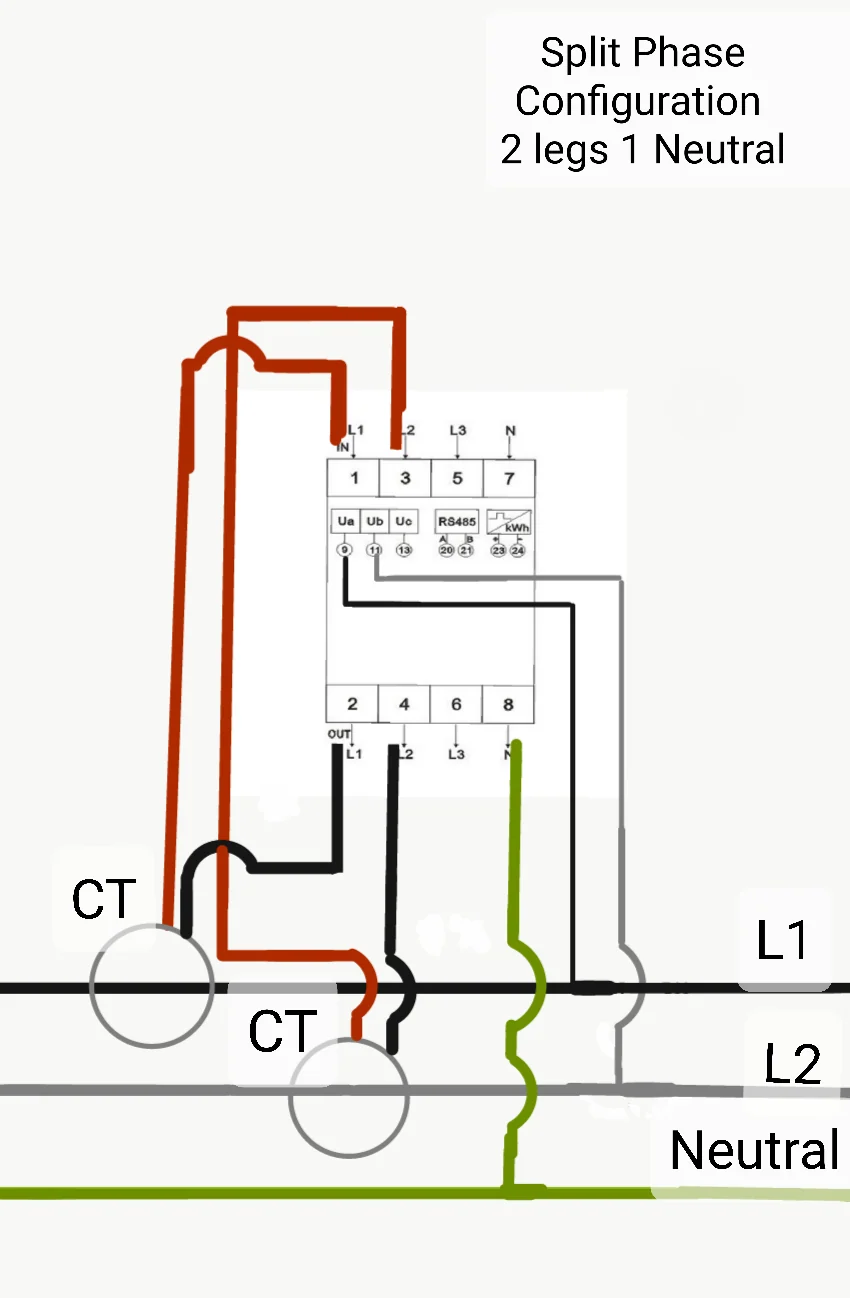

Supports 120 V two-wire and 208/240 V three-wire configurations, subject to the required neutral and approved wiring arrangement.
27 selectable CT ratios; confirm the ratio settings for the supplied model.
