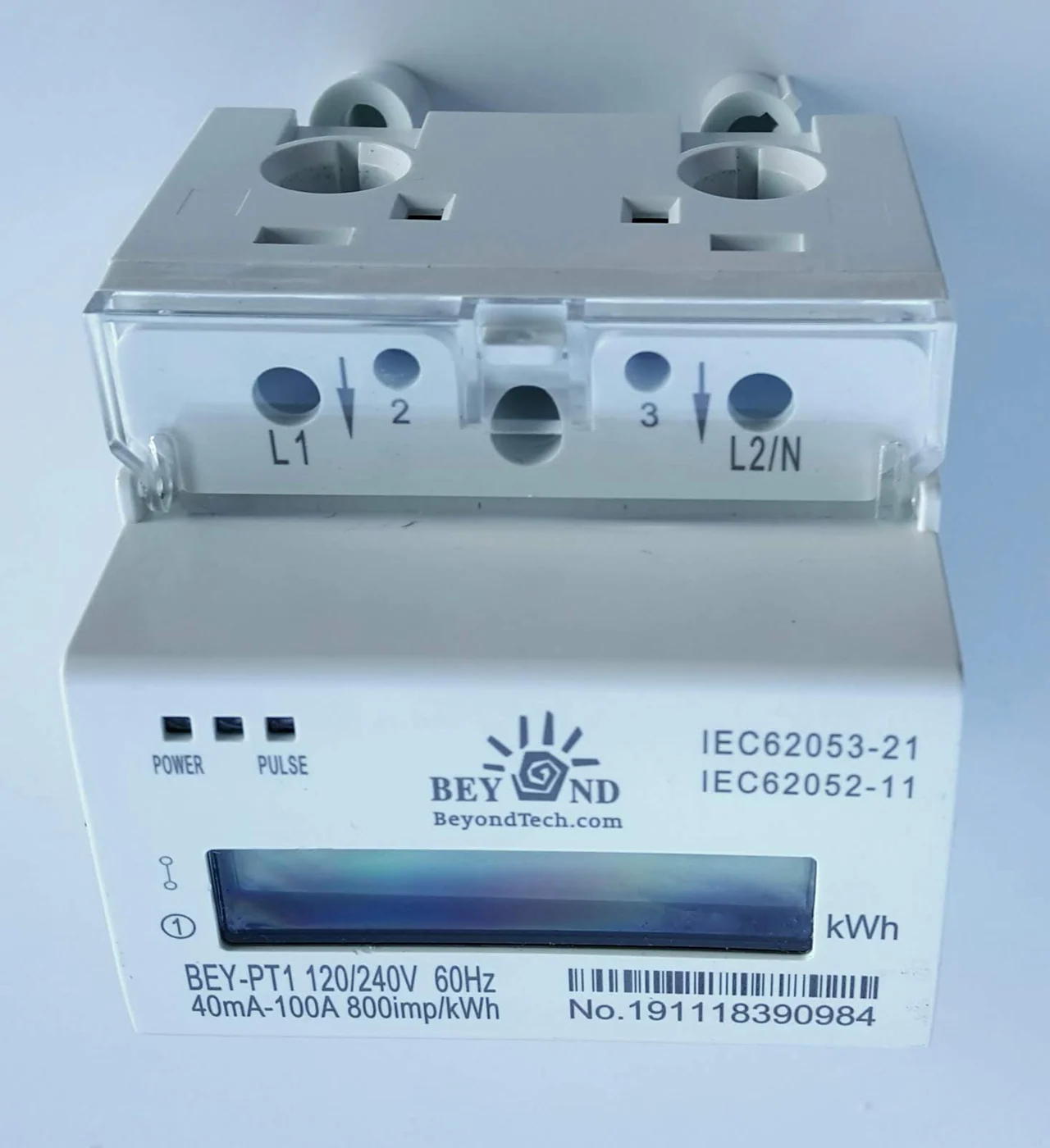

BEY-PT1

100 A Pass-Through Energy Meter

Available to order

Compact Class 1 kWh submeter for 120/208/240 V systems, with LCD display and pulse output.

$46.00~~$85.00~~USD · shipping included · tax at checkout

Need a larger quantity or custom setup?

One-year warranty Personal product support

Pass-through conductors with internal CTs.

Class 1 accuracy and LCD energy display.

Open-collector S0 pulse output.

Compatible with pulse readers, including the O.S.C.A.R. wireless reader.

PRODUCT OVERVIEW

Get to know the BEY-PT1.

A single-phase, pass-through energy submeter for compatible 120 V, 208 V, and 240 V systems. The meter uses internal current transformers and does not accept external CTs. The maximum conductor diameter is 3/8 inch.

Use the LCD display for local energy readings or connect the open-collector pulse output to a compatible AMR or electricity-monitoring system. Applications include marinas, RV parks, and multi-tenant buildings.

Supports compatible 120 V line-to-neutral and 208/240 V configurations with two lines and a neutral. A qualified electrician must verify the installation and model-specific wiring requirements.
