BEY630M2CT

Multifunction Energy Meter + 2 CTs

Available to order

Modbus multifunction meter for import/export energy monitoring, supplied with two 200:5 A split-core CTs.

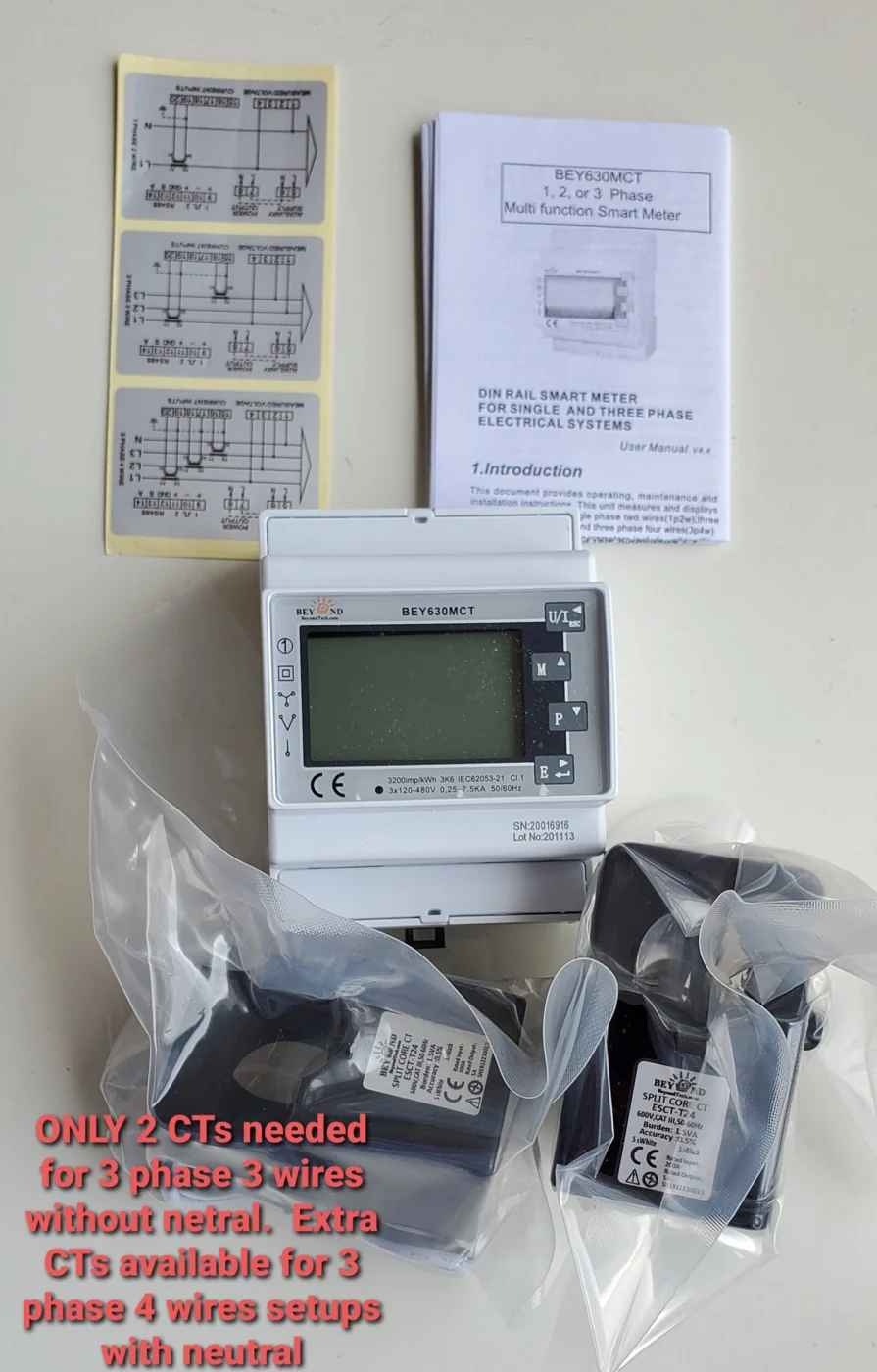

The standard bundle includes two CTs. Confirm whether your configuration requires three.

$198.00~~$250.00~~USD · shipping included · tax at checkout

Need a larger quantity or custom setup?

One-year warranty Personal product support

Measures phase-to-neutral and phase-to-phase voltages, phase and neutral currents, and line frequency.

Displays power, maximum power demand, and power factor.

Measures imported and exported active and reactive energy.

Reports voltage THD and current THD for supported configurations.

PRODUCT OVERVIEW

Get to know the BEY630M2CT.

A DIN rail multifunction energy meter for residential, commercial, and industrial monitoring. The supplied configuration includes two 200:5 A split-core current transformers. Other CT configurations up to 7,500:5 A are available on request.

The meter measures voltage, current, frequency, power, power factor, import/export active and reactive energy, maximum demand, and harmonic distortion. Compatible Modbus interfaces, gateways, and monitoring software are available for systems of different sizes.

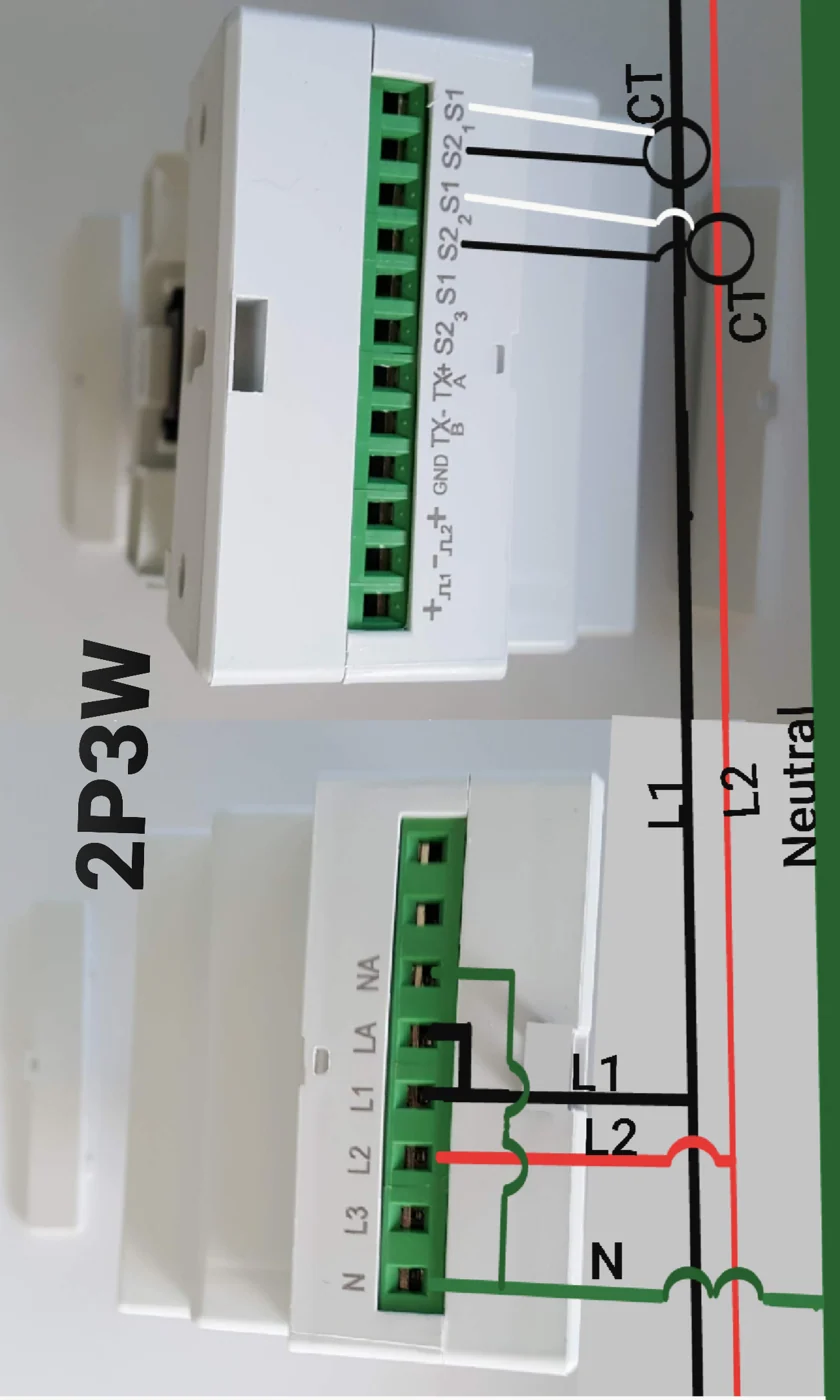

Supported configurations include single-phase two-wire with one CT, two-phase three-wire with two CTs, three-phase three-wire with two CTs, and three-phase four-wire with three CTs. A third CT may be required and is not included in the standard two-CT bundle.

The unit uses a separate auxiliary AC or DC power supply. Follow the model-specific wiring diagram for all voltage-reference, neutral, auxiliary-supply, and CT connections. Installation must be completed by a qualified electrician.

A compatible enclosure is available separately for applications that require environmental protection.

Product demonstration

Features & capabilities

Measures phase-to-neutral and phase-to-phase voltages, phase and neutral currents, and line frequency.
Displays power, maximum power demand, and power factor.
Measures imported and exported active and reactive energy.
Reports voltage THD and current THD for supported configurations.
Maximum-demand averaging periods can be configured up to 60 minutes.
Built-in Modbus and two pulse outputs for active and reactive energy.
Password-protected configuration.
CT options include 1 A, 5 A, or 333 mV configurations; confirm the supplied version.
